Airfoil Rail Guides .....
Because round rail buttons are a real drag!

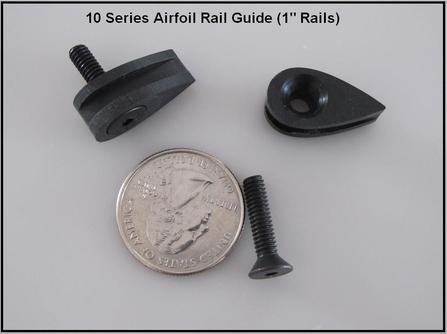

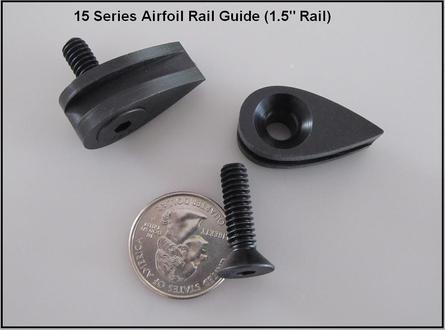

Not
just another round commodity rail button..... these are precision CNC
machined from black Delrin to a true NACA airfoil shape. This
allows for easier mounting on the rail and aerodynamics are improved
over the round versions. A low profile of 0.460" (15 Series) or
0.320" (10 Series), and maybe best of all they just look FAST!
A pair of 15's with two 1/4-20x1" Socket Flat Screws included is $10, or a pair of 10's with two 8-32 x3/4" Socket Flat Screws is $7. For any size or combination thereof shipping of $5.00 will cover a quantity of 5 going to the lower 48 of the USA. NYS residents will be charged 8% sales tax.
A pair of 15's with two 1/4-20x1" Socket Flat Screws included is $10, or a pair of 10's with two 8-32 x3/4" Socket Flat Screws is $7. For any size or combination thereof shipping of $5.00 will cover a quantity of 5 going to the lower 48 of the USA. NYS residents will be charged 8% sales tax.
Shipping will be
corrected and refunded if you are ordering multiple sizes. Any
combination of 5 pairs are shipped together.
SCP Thrust Plates available in standard sizes for 3 to 8.25 inch airframes...customs by request
6061
Aluminum, bright anodized red for durability and ease of
cleaning. Slip into your airframe and allow ALL thrust loading to
be transferred directly to the end of the airframe tubing. This
eliminates shear loaded joints, and these can be removed and
replaced to reconfigure your motor arrangement.
Drilled and threaded to accept the Aeropack line of Flanged Motor Retainers making it a simple process to mount this retainer system. No need to try to drill and line up 12 holes and inserts in plywood any more!
Drilled and threaded to accept the Aeropack line of Flanged Motor Retainers making it a simple process to mount this retainer system. No need to try to drill and line up 12 holes and inserts in plywood any more!

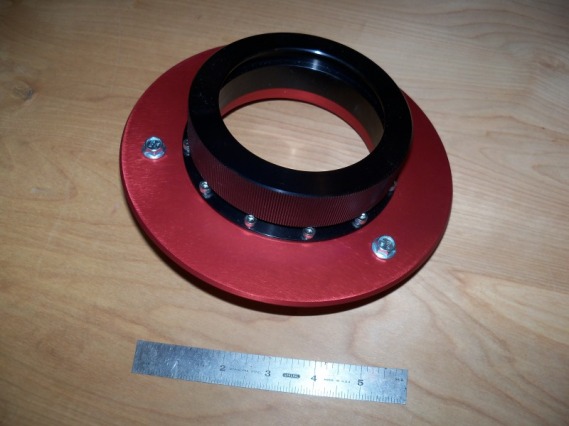

PML 7.5" Tube, 98mm Motor Thrust Plate
Here
is the PML 7.5" Thrust Plate, shown with the Aero Pack Quick
Change retainer system for a 98mm motor. CNC located tapped holes
means you don't have to mess with misaligned inserts any more.
Finished in bright red anodize.
We will correct for
taxes (if applicable - NYS will be charged 8%) and also overcharges for
shipping, and will combine shipping charges manually. If you see
extra shipping charges don't hesitate to make sure we catch it and fix
it! Thanks
|
|
|
|
Click the List of detailed specs below to expand it in a new window...........................................
| thrust_plates_retail_dec_2015.pdf |
